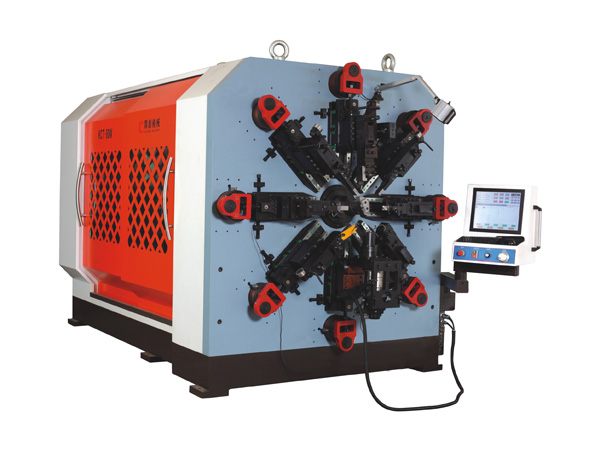

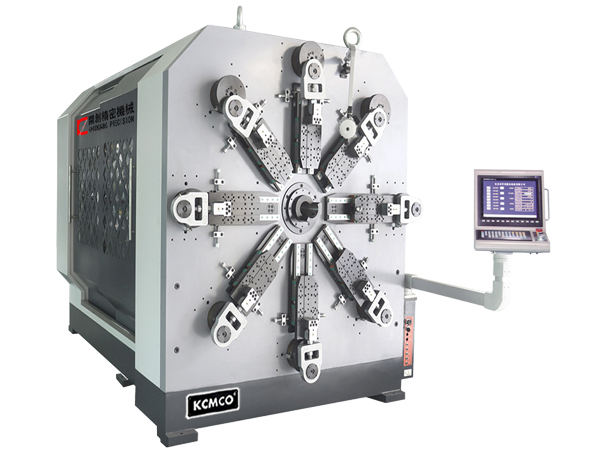

KCT-1280WZ 12-axis camless CNC versatile spring rotating forming machine, referred to as 8.0mm camless spring machine, machining line diameter φ3.0-8.0mm, suitable for the production of various precision compression spring, tension spring, torsion spring, scroll spring, tower spring, flat wire springs, special-shaped spring and molding line and other products, widely used in furniture, mold, machinery, agricultural machine, electric vehicle, automobile, railway and aviation etc..

  Our company's KCT-1280WZ 12-axis camless CNC versatile spring rotating forming machine, citing the Taiwan computer Windows7 control system and imported from Japan Yaskawa servo motor, using the unique non cam and no arm design tool are controlled independently by eight servo motors, the turret eight shaft, wire feeding shaft, a rotary core shaft, a shaft and a rotating shaft coiling line the system is composed of a crank connecting rod, forming system, and wire line switching system, wire straightening system and rotary core system etc.. In addition, the machine can be equipped with hydraulic scissors device, cutting noise is small, the damage to the mandrel and the machine is zero; at the same time, it greatly improves the processing range of spring, not only has the characteristics of fast forming, accurate accuracy and stable performance, but also more convenient and easy to operate.
